Patriot Reveals Viper PV553 SSD: 12.4 GB/s with a Blower Fan

Patriot Reveals Viper PV553 SSD: 12.4 GB/s with a Blower Fan

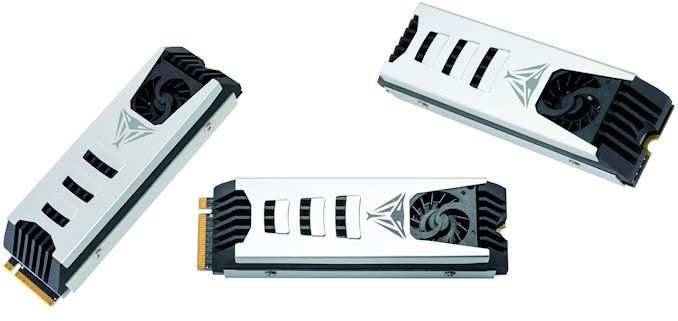

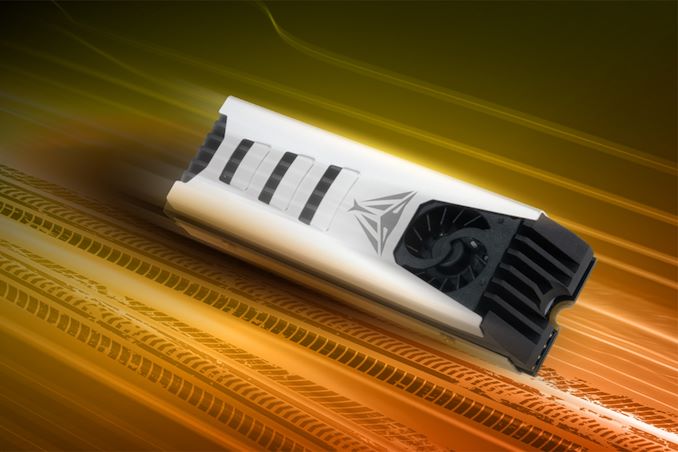

Patriot has formally introduced its first solid-state drives featuring a PCIe 5.0 x4 interface aimed at demanding users. The Viper PV553 SSD uses the company’s all-new active cooling system boasting an aluminum radiator, a blower fan, and a special heat shield that promises to ensure the best possible cooling for consistent performance under high workloads.

Set to be available in 1 TB, 2 TB, and 4 TB configurations, Patriot’s Viper PV553 uses Micron’s 232-layer 3D TLC NAND memory and we presume Phison’s PS5026-E26 controller as Patriot is a loyal partner of the Taiwan-based SSD controller developer.

As for performance, Patriot rates its 2 TB and 4 TB PV553 for sequential read/write speeds of up to 12,400 MB/s and 11,800 MB/s as well as up to 1.4 million random 4K read and write IOPS. Meanwhile, the 1 TB model is slightly slower and offers read/write speeds of up to 11,700 MB/s and 9,500 MB/s as well as up to 1.3/1.4 million read/write IOPS.

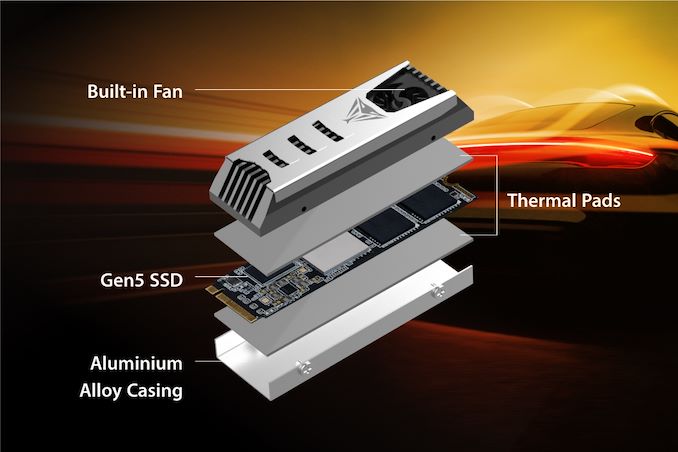

The drives come in an M.2-2280 form-factor and are compatible with desktops that have sufficient space inside as Patriot’s Viper PV553 SSDs are equipped with quite an extraordinary cooling system to take away 11W of thermal power that they can dissipate. The cooler (which features a 16.5 mm z-height) employs a rather big aluminum radiator that covers both the controller and memory chips, a blower fan, thermal pads on both sides of the drive, and an aluminum casing — which the company calls heat shield — that directs air produced by the fan through the radiator’s fins to maximize cooling performance.

The extensive cooling is supposed to ensure that Patriot’s Viper PV553 drives sustains performance even under severe workloads. In fact, Patriot says that the cooler ensures that the drive maintains temperature at about 45ºC in normal room temperature conditions.

Meanwhile, PV553 SSDs are not Patriot’s fastest drives. Recently the company demonstrated its Viper PV573 SSDs that use Micron’s B58R 3D TLC NAND with a 2400 MT/s data transfer rate and offer a sequential read and write speed of up to 14,000 MB/s and 12,000 MB/s, respectively. That drive will perhaps get more benefits from the new cooling system, but it will be available at a later date.

As it is always the case with Patriot’s premium SSDs, the Viper PV553 drives are backed by a five-year warranty and are guaranteed to sustain 700, 1400, and 3000 terabytes to be written.
