While Realtek is best known in the enthusiast space for for its peripheral controllers such as audio codecs and network controllers, the company also has a small-but-respectable SSD controller business that tends to fly under the radar due to its focus on entry-level and mainstream drives. But Realtek’s stature in the SSD space is on the rise, as the company is not only planning new PCIe Gen5 SSD controllers, but also their first high-end, DRAM-equipped SSD controller.

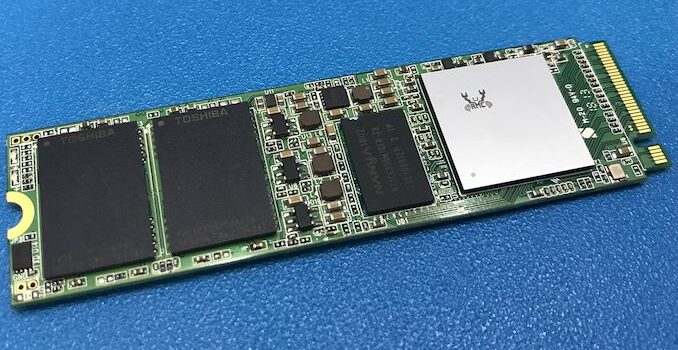

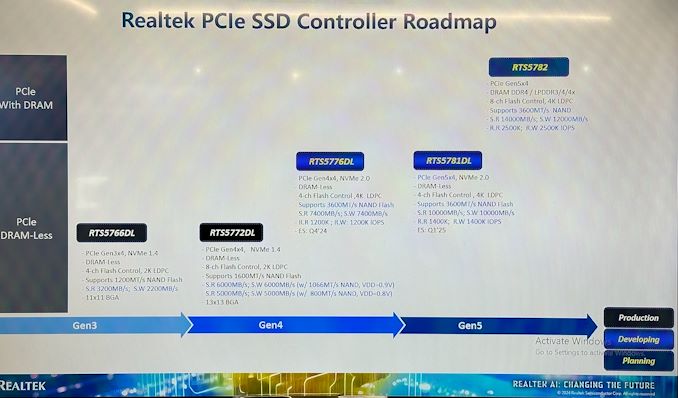

For this year’s Computex trade show, Realtek laid out a new SSD controller roadmap that calls for the company to release a trio of new SSD controllers over the next couple of years. First up is a new four-channel entry-level PCIe 4.0 controller, the RTS5776DL, which will be joined a bit later by a PCIe 5.0 variant, the RTS5781DL. But most interesting on Realtek’s new roadmap is the final chip being planned: the eight-channel, DRAM-equipped RTS5782, which would be the company’s first high-end SSD controller, capable of hitting sequential read rates as high as 14GB/second.














Realtek NVMe SSD Controller Comparison
  RTS5782 RTS5781DL RTS5776DL RTS5772DL RTS5766DL
Market Segment High-End Mainstream Entry-Level
Error Correction 4K LDPC 2K LDPC
DRAM DDR4, LPDDR4(X) No No No No
Host Interface PCIe 5.0 x4 PCIe 5.0 x4 PCIe 4.0 x4 PCIe 4.0 x4 PCIe 3.0 x4
NVMe Version NVMe 2.0 NVMe 2.0 NVMe 2.0 NVMe 1.4 NVMe 1.4
NAND Channels, Interface Speed 8 ch,

3600 MT/s
4 ch,

3600 MT/s
4 ch,

3600 MT/s
8 ch,

1600 MT/s
4 ch,

1200 MT/s
Sequential Read 14 GB/s 10 GB/s 7.4 GB/s 6 GB/s 3.2 GB/s
Sequential Write 12 GB/s 10 GB/s 7.4 GB/s 6 GB/s 2.2 GB/s
4KB Random Read IOPS 2500k 1400k 1200k
4KB Random Write IOPS 2500k 1400k 1200k

Diving a bit deeper into Realtek’s roadmap, the RTS5776DL is traditional DRAM-less PCIe Gen4 x4 controller with four NAND channels, and is aimed at entry-level drives. The controller’s NAND support is quite modern, however, supporting the latest ONFI/Toggle standards, which will allow it to hit NAND transfer rates up to 3600 MT/second. Across four channels, that’s enough bandwidth to fully saturate a PCIe 4.0 x4 connection with sequential read/writes, while random 4K IOPS can burst as high as 1.2 million. Engineering samples of the controller are set to emerge in Q4 2024, so do not expect actual drives based on this chip to emerge for sale until the second half of next year at the earliest.


Realtek is also preparing the RTS5781DL, which can be thought of as a PCIe 5.0 version of their DRAM-less controller platform. The RTS5781DL features the same four-channel NAND layout and 3600 MT/sec max NAND transfer rates, which with the additional bandwidth afforded by PCIe 5.0, shifts the performance bottleneck back to the NAND. Overall, Realtek expects drives with its first PCIe Gen5 SSD controller to hit sustained transfer rates up to 10GB/second, and up to 1.4 million random read/write IOPS. The company aims to make engineering samples of this controller available in the first quarter of 2025, so actual drives will hit the market in late 2025 at best.



Finally, the pinnacle of Realtek’s roadmap will be its RTS5782, which is the company’s first high-end SSD controller. Besides including support for on-drive DRAM (DDR4/LPDDR4X) for higher performance, the back-end of the RTS5782 will feature an eight NAND channel design that supports transfer rates up to 3600 MT/second. Drives built with the controller are expected to be able to sustain 14GB/second sequential read rates and 12GB/second sequential writes, while the 4K random IOPS performance jumps to 2.5 million 4K read and write IOPS.


Unfortunately, the RTS5782 is also the farthest out of the three controllers, as it’s still in the planning stages at Realtek. Consequently, for the moment the company isn’t offering any guidance on when the new controller will be ready. No doubt the company will have more to show off next year for Computex 2025.
