Compulab Passively-Cooled Airtop2 Inferno with GeForce GTX 1080

Compulab Passively-Cooled Airtop2 Inferno with GeForce GTX 1080

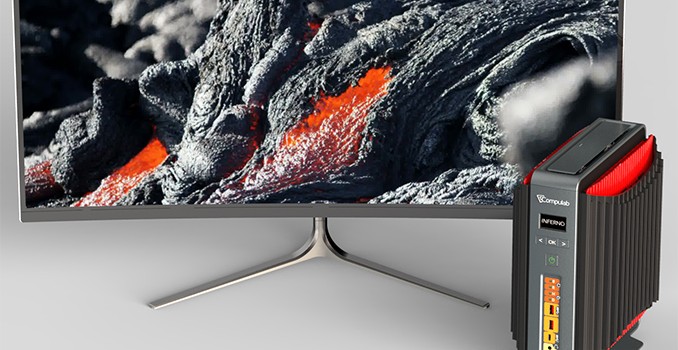

Compulab has announced its first passively-cooled gaming desktop computer developed using the company’s expertise in fanless SFF systems. The Airtop2 Inferno uses an enhanced version of the Compulab’s proprietary natural air-flow (NAF) cooling system that can handle Intel’s Core i7-7700K processor as well as NVIDIA’s GeForce GTX 1080 graphics card. The Airtop2 Inferno will only be mass-produced if the company sees interest from the end user towards such systems.

Miniature gaming computers are certainly a part of an ongoing trend towards miniaturization of PCs in general — numerous manufacturers offer SFF gaming systems. Passively-cooled gaming PCs represent another category. Numerous companies have attempted to build such systems and/or produce appropriate components (e.g., Calyos, Zalman, etc.), but they were either very expensive, large, or had compromises when it comes to performance. Enter, Compulab. The company has been producing fanless special-purpose SFF PCs since 2007 and has experience with passive cooling. Compulab has been selling its specialized Airtop-branded fanless workstations for over two years now and this month it announces plans to expand its business to gaming systems. The first of such machines will be the Airtop2 Inferno that builds upon the workstation introduced earlier this month, but has an improved cooling system that can handle higher TDPs.

The Compulab Airtop2 Inferno relies on a specially-designed Intel C236-based motherboard and will be equipped with Intel’s Core i7-7700K processor as well as NVIDIA’s GeForce GTX 1080 graphics card. The system can be outfitted with up to 64 GB of DDR4-2400 memory, two M.2 NVMe SSDs and four 2.5”/9.5mm SATA storage devices. When it comes to I/O capabilities, the Airtop Inferno2 will have two USB 3.1 Gen 2 (USB-A and USB-C) ports (enabled by a FACE module), seven USB 3.0 headers, two GbE controllers, optional 802.11ac Wi-Fi, Bluetooth, audio connectors, DisplayPort 1.2 as well as HDMI outputs and so on. Since the Airtop2 Inferno relies on the Airtop2, it has almost the same connectivity capabilities as the fanless workstation, so it supports an optional 4G/LTE modem as well as FACE expansion modules.

The key difference between the Airtop2 and the Airtop2 Inferno is the enhanced natural air-flow (NAF) cooling technology capable of removing up to 300 W of heat. As discussed two years ago, the NAF heat-exchange system uses two special side-panels, each of which can dissipate heat. The side-panels are equipped with traditional flat copper heat-pipe arrays (with micro-channels) that take away heat from the hottest components (i.e., the CPU and the GPU) and spread it across the side-panel. The heat from the heat-pipe arrays is removed by the special air-tube panels consisting of 14 tubes with air inside. Once the air gets hot, it starts to rise up, removing heat from the side panels. The Airtop2 Inferno has side panels that feature additional aluminum tubes/heat spreaders that can dissipate more heat than the regular NAF panels and therefore handle TDP of Intel’s Core i7-7700K as well as NVIDIA’s GeForce GTX 1080. Compulab believes that the maximum TDP rating that the NAF Inferno cooling system can handle is 300 W, enough to keep the aforementioned CPU and GPU cool, but without overclocking.

Compulab Airtop2 Inferno
  General Specifications
CPU Intel Core i7-7700K (4C/8T, 4.2/4.5 GHz)
Chipset Intel C236
SKL, KBL support,
up to 20 PCIe 3.0 PCIe lanes
x1, x2, x4 bifurcation
RAID, vPro, TXT etc.
RAM Up to 64 GB DDR4-2400
GPU NVIDIA GeForce GTX 1080 8 GB
Intel HD Graphics 630
Storage DFF 4 × 2.5″/9.5mm SATA HDDs/SSDs or
2 × 2.5″/15mm SATA drives
Modules 2 × M.2-2280 PCIe NVMe SSDs
3 × M.2-22110 PCIe NVMe SSDs on backplane card installed instead of discrete graphics card
Expansion PCIe x16
FACE Modules
Display Outputs iGPU 2 × DisplayPort 1.4
1 × HDMI 1.4
dGPU 3 × DisplayPort 1.4 + 1 × HDMI 2.0b
Networking Wired Dual GbE: Intel I219 + Intel I210
Wireless 802.11ac, 2T2R, 2.4 GHz/5GHz
Bluetooth 4.2
WWAN Optional M.2 B-key 3042 + 2×RP-SMA antennas modem with micro-SIM
I/O Front: 2 × USB 3.1 Gen 2 (USB-A, USB-C), 1 × USB 3.0
Back: 6 × USB 3.0, 3 × RS232
Audio Realtek ALC1150 audio codec with line-out, mic, S/PDIF
Dimensions 150 × 300 × 255 mm
5.9″ × 11.8″ × 10″
Volume ?
Operating System Windows 10
FACE Modules FM-AT2 Built-in-self-test LED indicators | 2x USB 3.0 | audio | micro-SD | mini-PCIe
FM-POE 4x Gbit Ethernet with PoE (PSE) | 2x USB 2.0
FM-LANE4U4 4x Gbit Ethernet | 4x USB 2.0
FM-OPLN 2x Optical Gbit Ethernet (SFP+) | 2x USB 2.0
FM-EBP Gigabit Ethernet bypass
FM-SER 6x RS232 / RS485
FM-XTDM2 2x mini-PCIe

Compulab describes its Inferno as the Airtop2 on steroids. It is very similar, but uses a different processor, graphics card, cooling system, PSU and is equipped with a module that enables USB 3.1 Gen 2 connectivity. The company has finished development of the system, but needs to fabricate the extra passive cooling elements, for which it plans to run a special crowdfunding campaign. With all things go, Compulab intends to ship the system in June. The actual price of the Airtop2 Inferno will depend on exact configurations of RAM and storage, but expect starting price to be comparable with pricing of beefed-up Airtop2 workstation.

Compulab expects to start selling the Airtop2 Inferno direct from its website in a couple of months.

Related Reading

Corsair ONE Gets Caffeinated: Now with Coffee Lake

Corsair ONE Gets Caffeinated: Now with Coffee Lake

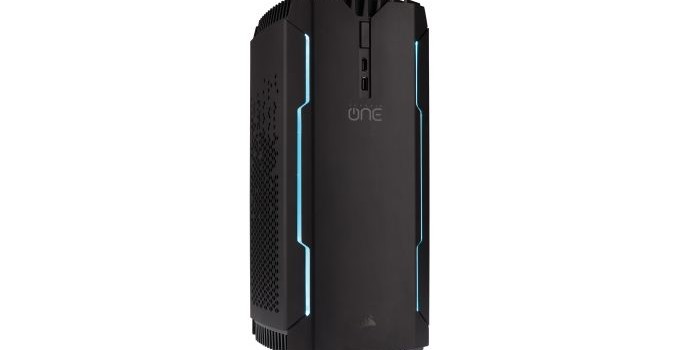

This week Corsair introduced two new versions of its small form-factor desktop, called the ‘ONE’. The new versions upgrade the processor to the latest generation Intel six-core Coffee Lake processors. The end result is more performance, with a corresponding increase in price. The new versions, called the ONE Pro Plus and the ONE Elite, represent the best performance versions of the Corsair One, while the model at the bottom of the stack is discontinued.

Corsair’s new ONE Pro Plus and ONE Elite systems are based on Intel’s Core i7-8700K processor, and subsequently get an upgrade to a Z370 based motherboard. The new Corsair ONE PCs come in the familiar 12L aluminum chassis with a custom liquid cooling system, featuring dual liquid cooling loops that are used to cool down the CPU and the GPU separately. For the new units, the GPU is also upgraded, to NVIDIA’s GeForce GTX 1080 Ti graphics card. Despite packing rather significant compute horsepower then, the use of the liquid cooling loops allows Corsair to promote the ONE Pro Plus and ONE Elite as quiet.

As for other components, the new high-end Corsair ONE models are outfitted with 16 GB of Vengeance LPX DDR4-2400 (ONE Plus) or 32 GB of Vengeance LPX DDR4-2666 (Elite) memory, a 480 GB M.2 NVMe SSD, and a 2 TB 2.5” 5400-RPM HDD. Since the systems use industry-standard components, they are upgradeable. Technically the CPU and GPU can also be overclocked, as long as cooling performance and 500W PSU are sufficient.

Specifications of Early-2018 Corsair ONE Gaming PCs
Model ONE Pro
ONE Pro Plus
ONE Elite
CPU Core i7 7700K with liquid cooling Core i7 8700K with liquid cooling
GPU GeForce GTX 1080 w/LCS GeForce GTX 1080 Ti /w LCS
DRAM 16 GB DDR4-2400 32 GB DDR4-2400 16 GB DDR4-2400 32 GB DDR4-2666
Motherboard mini-ITX, Z270 chipset mini-ITX, Z370 chipset
Storage SSD 480 GB NVMe
HDD 2 TB HDD, 5400 RPM
PSU 400 W SFX 500 W SFX
Warranty 2 years
MSRP $2300 $2500 $2800 $3000

The new ONE Pro Plus and ONE Elite gaming machines exist alongside Corsair’s existing ONE Pro systems, featuring Intel’s Core i7-7700K as well as NVIDIA’s GeForce GTX 1080. At the same time, Corsair has EOLed its original ONE computer based on the Core i7-7700 and the GeForce GTX 1070. Corsair says that customer interest for the $1800 system was low, so it decided to discontinue the SKU. As a result, the range now starts at $2300, while the most expensive Corsair ONE Elite model retails for $3000.

The new Corsair ONE Pro Plus and Corsair ONE Elite will be available worldwide directly from Corsair as well as its resellers.

Related Reading

Acer Reveals Predator Orion 9000 Gaming Desktop: Up To 18 Cores, 4 Vega GPUs

Acer Reveals Predator Orion 9000 Gaming Desktop: Up To 18 Cores, 4 Vega GPUs

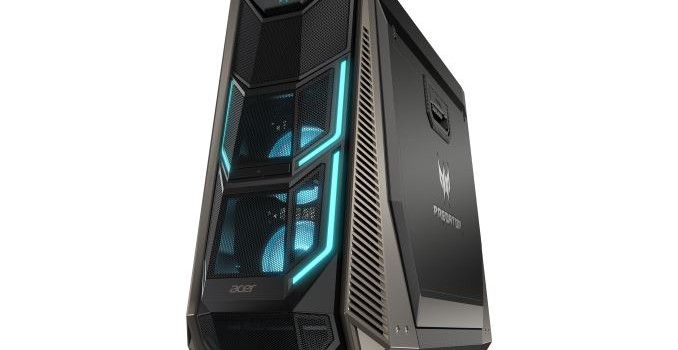

In one of many announcements from Acer at IFA, the company has revealed a powerful new gaming desktop in their Predator line, the Acer Predator Orion 9000. The new desktop will support up to an i9 Extreme Edition processor, Intel’s i9 7980XE, with up to 18 cores and 36 threads. The higher core count versions will appeal more to prosumers and workstation users than to the bulk of a typical gamer’s budget. It will also be able to squeeze in four AMD Radeon RX Vega graphics cards in CrossfireX, or up to two NVIDIA GTX 1080Ti’s in SLI. The Orion 9000 is being pitched for gaming at 4K+ resolutions, is VR capable, and can certainly take on compute loads. Acer says the Orion 9000 series is “power you can see” and “the most powerful PC we’ve ever made.”

Outside of the high-end specifications, the chassis itself looks to intimidate. It uses both black and silver colors with an angled front bezel like that of a stealth vehicle designed to deflect radar with angled cues around the entire chassis. There is a large windowed side panel with a latch on top for access inside. In fact, both sides of the case have that latch up top for tool less entry. RGB lighting flanks the angled front of the case as well as inside with optional LED fans lighting up the room and showing off the inside. Moving the case should be easier with the integrated handles up top as well as casters/wheels on the bottom.

If overclocking is your thing and do not like to play around in the BIOS, Acer includes ‘one-punch’ overclocking to select turbo performance with a single press of the button. With overclocking though comes extra power use and of course heat. The Orion 9000 series feature liquid cooling and Acer’s IceTunnel 2.0, an airflow management solution separating the system in several thermal zones, each with an individual airflow tunnel to remove the heat. The front and top of the chassis have large metal mesh panels to take in and expel air. Five 120mm fan locations help move the air through, with some of the airflow intentionally directed behind the motherboard tray to cool storage devices.

Detailed system specifications are a mystery outside of being Intel X299 based. Though it is labeled a gaming machine, in practice it’s going to pull double-duty as both a gaming and workstation machine, depending on the CPU used. Intel’s high-end 18 core i9 7980XE makes for a good workstation, and conversely gamers are likely better off with the lower core count CPUs and their higher frequencies.

We do know the system can support up to 128GB of quad-channel DDR4 memory allowing for plenty of memory intensive activities on the machine. Other connectivity includes two USB3.1 Gen 2 ports (Type-A and Type-C), eight USB3.1 Gen 1 ports (1xType-C  and 7x Type-A) as well as two USB2.0 ports. The Predator Orion 9000 supports a total of three M.2 slots for storage purposes. Other details were not provided.

The Predator Orion 9000 Series gaming desktops will be available in North America in December with prices starting at $1,199; and in EMEA regions in November, starting at €1,999.

Related Items:

Alienware Area-51 Threadripper Edition Announced at E3, Available for Order July 27

Alienware Area-51 Threadripper Edition Announced at E3, Available for Order July 27

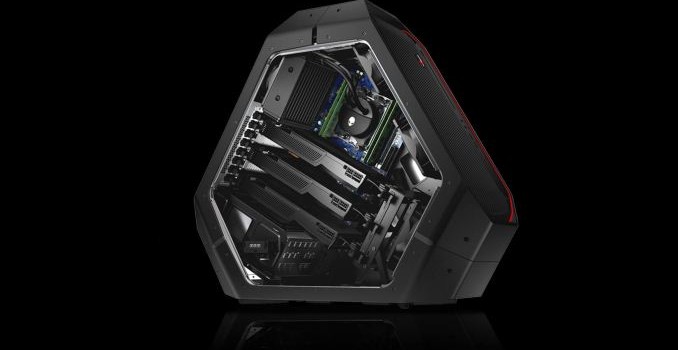

Alienware this evening has announced their new Area-51 Threadripper Edition desktop at E3. The high-end gaming desktop offers up to a heady 16-core/32-thread AMD Ryzen Threadripper processor – marking AMD’s first OEM win for the HEDT processor – paired with a customized CPU liquid cooling system. In addition, Alienware has revealed that they will be “the exclusive OEM launch partner to deliver AMD Ryzen Threadripper pre-built systems to market”, which can be a bit confusing, but as later confirmed by PCWorld, is solely about a temporary exclusive among the OEMs. Alienware’s exclusive deal won’t impact stand-alone CPUs for enthusiasts.
