Fractal Design Unveils Focus G Series Cases
  • Comments are Closed

Fractal Design Unveils Focus G Series Cases

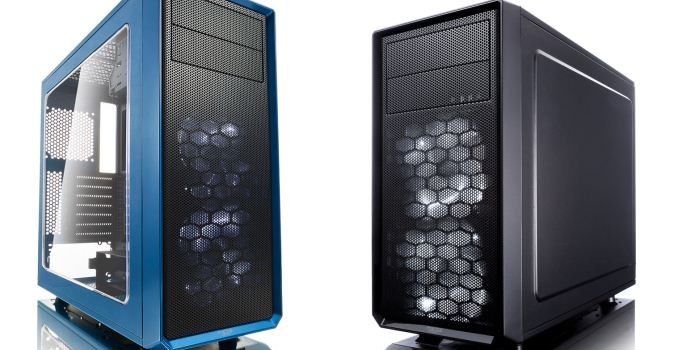

Fractal Design has just launched two new cases under the banner of the new Focus G series. The Focus G is a standard ATX mid-tower, while the Focus G Mini features a more compact footprint and is intended for Micro-ATX and Mini-ITX builds. While both models will be offered in black, the larger Focus G will also be offered in white and a brand new choice of Gunmetal Gray, Mystic Red, and Petrol Blue. This multiple color option is a first for Fractal Design.

The Focus G series is manufactured using a combination of steel and plastic as you would expect from a cost-conscious case series. What you wouldn’t necessarily expect in 2017 are the two external 5.25” drive bays. Size and color differences aside, these two models are effectively twins and they share numerous key features.

Both cases have a large side panel window, removeable and vibration dampened storage drive bays, 18mm to 25mm of cable routing room behind the motherboard tray, and a front I/O panel that includes one USB 3.0 port, USB 2.0 port, and two audio jacks. When it comes to fans, both models have a total of six 120mm fan mounts, four of which can also hold 140mm fans (three on the Focus G Mini). There are removable dust filters everywhere but the rear. Fractal Design has included two front-mounted Silent Series LL 120mm LED fans that glow white light through the front mesh.

Fractal Design Focus G Series
  Focus G Focus G Mini
Motherboard Size ATX, Micro-ATX, Mini-ITX Micro-ATX, Mini-ITX
Drive Bays External – –
Internal 2 × 2.5″ or 3.5″ and 1 × 2.5″ 2 × 2.5″ or 3.5″ and 1 × 2.5″
AIB Bays Internal 7, up to 380 mm cards are supported 4, up to 380 mm cards are supported
Cooling Front 2 × 120 mm or 2 × 140 mm 2 × 120 mm or 1 × 140 mm
Rear 1 × 120 mm 1 × 120 mm
Top 2 × 120 mm or 2 × 140 mm 2 × 120 mm or 2 × 140 mm
Middle – –
Bottom 1 × 120 mm 1 × 120 mm
Radiator Support Front 1 × 120/240 mm or 140/280 mm 1 × 120/240 mm or 140 mm
Rear 1 × 120 mm 1 × 120 mm
Top 1 × 240 mm 1 × 240 mm
Middle – –
Bottom – –
I/O Port 1 × USB 2.0
1 × USB 3.0
1 × Headphone
1 × Mic		 1 × USB 2.0
1 × USB 3.0
1 × Headphone
1 × Mic
Power Supply Size Up to 230 mm Up to 230 mm
Dimensions – –
Colors Multiple colors Black
Features Large side window panel Large side window panel
Price $49.99 $49.99

These Focus G series models also have extensive liquid cooling support, with radiator mounts in the front, rear, and the top of the cases. Those more interested in air cooling will be able to fit heatsinks that are up to 165mm tall, which means just about every cooler on the market. Both models can also handle graphics cards up to 380mm long, while power supply depth is a very spacious 230mm. The other similarity is that both models are going to retail for $49.99 USD, which places them firmly in the competitive budget case market.

We have no word on availability, but sometime after Computex is a firm bet.

Related Reading

Gallery: Focus G

Gallery: Focus G Mini

Fractal Design Unveils Focus G Series Cases
  • Comments are Closed

Fractal Design Unveils Focus G Series Cases

Fractal Design has just launched two new cases under the banner of the new Focus G series. The Focus G is a standard ATX mid-tower, while the Focus G Mini features a more compact footprint and is intended for Micro-ATX and Mini-ITX builds. While both models will be offered in black, the larger Focus G will also be offered in white and a brand new choice of Gunmetal Gray, Mystic Red, and Petrol Blue. This multiple color option is a first for Fractal Design.

The Focus G series is manufactured using a combination of steel and plastic as you would expect from a cost-conscious case series. What you wouldn’t necessarily expect in 2017 are the two external 5.25” drive bays. Size and color differences aside, these two models are effectively twins and they share numerous key features.

Both cases have a large side panel window, removeable and vibration dampened storage drive bays, 18mm to 25mm of cable routing room behind the motherboard tray, and a front I/O panel that includes one USB 3.0 port, USB 2.0 port, and two audio jacks. When it comes to fans, both models have a total of six 120mm fan mounts, four of which can also hold 140mm fans (three on the Focus G Mini). There are removable dust filters everywhere but the rear. Fractal Design has included two front-mounted Silent Series LL 120mm LED fans that glow white light through the front mesh.

Fractal Design Focus G Series
  Focus G Focus G Mini
Motherboard Size ATX, Micro-ATX, Mini-ITX Micro-ATX, Mini-ITX
Drive Bays External – –
Internal 2 × 2.5″ or 3.5″ and 1 × 2.5″ 2 × 2.5″ or 3.5″ and 1 × 2.5″
AIB Bays Internal 7, up to 380 mm cards are supported 4, up to 380 mm cards are supported
Cooling Front 2 × 120 mm or 2 × 140 mm 2 × 120 mm or 1 × 140 mm
Rear 1 × 120 mm 1 × 120 mm
Top 2 × 120 mm or 2 × 140 mm 2 × 120 mm or 2 × 140 mm
Middle – –
Bottom 1 × 120 mm 1 × 120 mm
Radiator Support Front 1 × 120/240 mm or 140/280 mm 1 × 120/240 mm or 140 mm
Rear 1 × 120 mm 1 × 120 mm
Top 1 × 240 mm 1 × 240 mm
Middle – –
Bottom – –
I/O Port 1 × USB 2.0
1 × USB 3.0
1 × Headphone
1 × Mic		 1 × USB 2.0
1 × USB 3.0
1 × Headphone
1 × Mic
Power Supply Size Up to 230 mm Up to 230 mm
Dimensions – –
Colors Multiple colors Black
Features Large side window panel Large side window panel
Price $49.99 $49.99

These Focus G series models also have extensive liquid cooling support, with radiator mounts in the front, rear, and the top of the cases. Those more interested in air cooling will be able to fit heatsinks that are up to 165mm tall, which means just about every cooler on the market. Both models can also handle graphics cards up to 380mm long, while power supply depth is a very spacious 230mm. The other similarity is that both models are going to retail for $49.99 USD, which places them firmly in the competitive budget case market.

We have no word on availability, but sometime after Computex is a firm bet.

Related Reading

Gallery: Focus G

Gallery: Focus G Mini

Fractal Design Launches New S24 and S36 Celsius AIO Liquid Coolers
  • Comments are Closed

Fractal Design Launches New S24 and S36 Celsius AIO Liquid Coolers

Fractal Design has just unveiled a different take on a new line of all-in-one liquid coolers, called the Celsius series. Unlike conventional AIOs, these new models are not actually closed-loop: they have threaded fittings on the radiator side in order to allow for expansion possibilities with common DIY liquid cooling components.

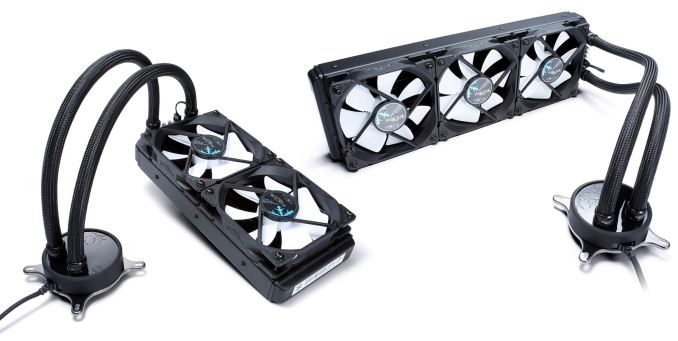

The two units being launched are the Celsius S24 and Celsius S36, which feature 240mm and 360mm radiators respectively. The radiators feature aluminium housings and fins, and they are both around 30mm thick. As mentioned above, it is the fittings that are the really interesting part of this new product line. While the CPU block fittings are non-removable, the radiator fittings are knurled metal and feature a standard G 1/4″ thread. Since the G 1/4″ fitting is so common in the custom liquid cooling market, the expansion options are vast. As long as you add additional coolant, you could loop in a second waterblock, a second radiator, or even a reservoir. As a result, you cannot consider these Celsius models to be strictly closed-loop coolers (CLCs), but instead something of a new hybrid.

There is an integrated fan hub located between the radiator’s inlet and output ports, with two free 4-pin fan headers on the S24 model and three unoccupied 4-pin fan headers on the S36 model. Surprisingly, these fan headers are actually attached to a hardware fan controller that is built into the CPU block. Fractal Design has been incredibly clever and slipped the cable in between the sleeving and the rubber tubing, and they have run it the entire 400mm tubing length to the CPU block/pump/fan controller unit.

Gallery: Celsius S24

The fan controller has two user-selectable modes, either “auto” (which is based on the liquid temperature and handled by the cooler itself), or a “PWM” mode (which gives control to the motherboard and is based on the actual CPU temperature). In either mode, both the pump and the fan speeds will be increased/decreased since they are all PWM capable.

Speaking of fans, these Celsius coolers come with either two or three of the high-quality Dynamic X2 GP-12 PWM fans that Fractal Design launched last summer. They have rotational speeds of between 500-2000 RPM, and use “LLS” bearings, with a claimed 32.2 dB(A) full speed noise levels, a stated airflow of 87.6 CFM, 2.30mm H2O of static pressure, and they are rated for up to 100,000 hours of use.

The pump, which is built into the CPU block housing, has a rotational speed of between 1950-3150 RPM, and a full speed noise level of 20.0 dB(A). This gives it a 50,000 hour MTBF (or 5.7 years full use). Total power consumption for the Celsius S36 is listed at 9.0W, while the smaller S24 clocks in at 6.6W. All of this is powered from a single fan header on your motherboard, so a dedicated water pump header with high amperage capabilities is probably a good thing. The CPU block has a copper base and features sound-dampening materials in order to reduce operating noise output. High thermal conductivity thermal paste is pre-applied.

These liquid coolers support all modern CPU sockets, including the latest AMD AM4 platform. We have no word on availability, but the Fractal Design Celsius S24 will retail for $109 USD and the larger Fractal Design Celsius S36 for $119 USD. Both of these units are covered by a five-year warranty.

Gallery: Celsius S36

Related Reading

Fractal Design Launches New S24 and S36 Celsius AIO Liquid Coolers
  • Comments are Closed

Fractal Design Launches New S24 and S36 Celsius AIO Liquid Coolers

Fractal Design has just unveiled a different take on a new line of all-in-one liquid coolers, called the Celsius series. Unlike conventional AIOs, these new models are not actually closed-loop: they have threaded fittings on the radiator side in order to allow for expansion possibilities with common DIY liquid cooling components.

The two units being launched are the Celsius S24 and Celsius S36, which feature 240mm and 360mm radiators respectively. The radiators feature aluminium housings and fins, and they are both around 30mm thick. As mentioned above, it is the fittings that are the really interesting part of this new product line. While the CPU block fittings are non-removable, the radiator fittings are knurled metal and feature a standard G 1/4″ thread. Since the G 1/4″ fitting is so common in the custom liquid cooling market, the expansion options are vast. As long as you add additional coolant, you could loop in a second waterblock, a second radiator, or even a reservoir. As a result, you cannot consider these Celsius models to be strictly closed-loop coolers (CLCs), but instead something of a new hybrid.

There is an integrated fan hub located between the radiator’s inlet and output ports, with two free 4-pin fan headers on the S24 model and three unoccupied 4-pin fan headers on the S36 model. Surprisingly, these fan headers are actually attached to a hardware fan controller that is built into the CPU block. Fractal Design has been incredibly clever and slipped the cable in between the sleeving and the rubber tubing, and they have run it the entire 400mm tubing length to the CPU block/pump/fan controller unit.

Gallery: Celsius S24

The fan controller has two user-selectable modes, either “auto” (which is based on the liquid temperature and handled by the cooler itself), or a “PWM” mode (which gives control to the motherboard and is based on the actual CPU temperature). In either mode, both the pump and the fan speeds will be increased/decreased since they are all PWM capable.

Speaking of fans, these Celsius coolers come with either two or three of the high-quality Dynamic X2 GP-12 PWM fans that Fractal Design launched last summer. They have rotational speeds of between 500-2000 RPM, and use “LLS” bearings, with a claimed 32.2 dB(A) full speed noise levels, a stated airflow of 87.6 CFM, 2.30mm H2O of static pressure, and they are rated for up to 100,000 hours of use.

The pump, which is built into the CPU block housing, has a rotational speed of between 1950-3150 RPM, and a full speed noise level of 20.0 dB(A). This gives it a 50,000 hour MTBF (or 5.7 years full use). Total power consumption for the Celsius S36 is listed at 9.0W, while the smaller S24 clocks in at 6.6W. All of this is powered from a single fan header on your motherboard, so a dedicated water pump header with high amperage capabilities is probably a good thing. The CPU block has a copper base and features sound-dampening materials in order to reduce operating noise output. High thermal conductivity thermal paste is pre-applied.

These liquid coolers support all modern CPU sockets, including the latest AMD AM4 platform. We have no word on availability, but the Fractal Design Celsius S24 will retail for $109 USD and the larger Fractal Design Celsius S36 for $119 USD. Both of these units are covered by a five-year warranty.

Gallery: Celsius S36
